Motorola Solutions

CM Series

The MOTOTRBO CM Series mobile radio is a reliable, cost-efficient solution to keep your team in contact so they can communicate, coordinate and collaborate for maximum efficiency and safety. The CM Series is designed for the everyday driver, so your workers can connect without distraction, whether they're delivering cargo, dispatching trucks, or driving a school bus. The CM Series is easy to use and delivers clear communication for maximum efficiency of your operation.

The CM Series radios include:
CM200d

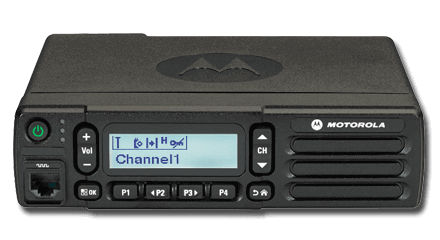

CM300d

Performance Characteristics

Frequency Band:
VHF, UHF

Frequency Range:
VHF 136-174 MHz UHF 403-470 MHz

Power Output:
1-25W, 25-45W (VHF); 1-25W, 25-40W (UHF)

Number of Channels/Groups/Zones:
16 / 99 Channels

Channel spacing:
12.5, 25

Physical Characteristics

Dimensions H x W x D
1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)

Weight
2.9 lbs (1.3 kg)

Display
CM200d: Numeric Display
CM300d: Alphanumeric Display

User Environment

Operating temperature
-30°C / +60°C

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP54

Request A Quote

Analog/Digital:
Get all the benefits of digital, including better voice quality, better range and better battery life, but retain compatibility with your existing radio fleet. With analog and digital capabilities, you have the freedom to migrate to the latest technology at your own pace.
Analog only:
Purchase analog capability now and transition to digital capability when you're ready. All you will need is a simple software upgrade.
Transmit Interrupt Capability (decode only):
Enables a supervisor to interrupt a CM Series user to deliver critical communication exactly when and where it's needed.
Compatible with Radio Management Suite:
Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.
Dual Capacity Direct Mode:
Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel, without the need for a repeater.
IP54 Rated:
Dustproof and splashproof, so you can work with confidence in challenging environments.

Brochures

Spec Sheets

Motorola CM Series Spec Sheet

Antenna [+]

VHF Antennas

	HAD4006 VHF 1/4 Wave Antenna, 136-144 MHz
	HAD4007 VHF 1/4 Wave Antenna, 144-150.8 MHz
	HAD4008 VHF 1/4 Wave Antenna, 150.8-162 MHz
	HAD4009 VHF 1/4 Wave Antenna, 162-174 MHz
	HAD4022 VHF Wideband Antenna 3.0 dB Gain, 136-174 MHz

UHF Antennas

	HAE4002 UHF 403-430 MHz, 1/4 Wave Roof Mount, Mini-U
	HAE4003 UHF 1/4 Wave Antenna, 450-470 MHz
	HAE4010 UHF 406-420 MHz, 3.5 dB Gain, Roof Mount, Mini-U
	HAE4011 UHF 450-470 MHz, 3.5 dB Gain, Roof Mount, Mini-U
	HAE6022 UHF, 403-527 MHz, 2 dB Gain, Through-hole Mount, Mini-U
	RAE4004ARB UHF 445-470 MHz, 5 dB Gain, Roof Mount, Mini-U (with base)

Installation, Cables and Mounting Accessories [+]

	RLN6466 Low Profile Trunnion Kit
	RLN6467 High Profile Trunnion Kit
	RLN6468 Key Lock Trunnion Kit
	FTN6083 In-Dash Mounting Kit - DIN
	HKN4137 Power Cable to Battery - 10 foot, 15 amp 14 AWG
	HKN4191 Power Cable to Battery - 10 foot, 20 amp 12 AWG
	HKN4192 Power Cable to Battery - 20 foot, 20 amp 10 AWG
	HKN9327 Ignition Sense Cable
	3012045001 Trunnion Mounting Screws

Cables & Connectors

	PMKN4147 Mobile Front Programming Cable
	PMKN4151 Mobile Rear Accessory Connector Universal Cable
	GMBN1021 Rear Accessory Connector Seal with Connector and Pins
	HLN9457 16 Pin Accessory Connector Kit
	PMLN5620 Connector Extender, 20 pieces

Microphones and Audio Accessories [+]

	PMMN4090 Standard Compact Microphone
	PMMN4091 Heavy-Duty Microphone
	PMMN4089 Keypad Microphone
	PMLN6481 Telephone Style Handset
	GMMN4065 Visor Microphone
	PMMN4098 Desktop Microphone
